Product overview
This product is designed and manufactured by the engineering and technical personnel of the company with reference to the same type of advanced products at home and abroad. The valve body adopts full-channel streamlined design, with low flow resistance and large flow. In terms of the drive mode, hydraulic operation is adopted, namely automatic operation of the up and down movement of main valve flap through utilizing the hydraulic pressure in pipeline to control the opening of valve port and to adjust the downstream pressure so as to make the downstream pressure be controlled within the range of set pressure value of the pilot valve spring. When the downstream pressure exceeds the set value, the reducing valve will automatically close, no matter how the inlet pressure P1 fluctuates, stable outlet pressure P2 can be output. Regardless of how the downstream flow changes, the outlet pressure P2 can be maintained at the set valve of the pilot valve. In short, this product is the ideal product for domestic water supply, fire protection system and industrial water supply system.
Structural form

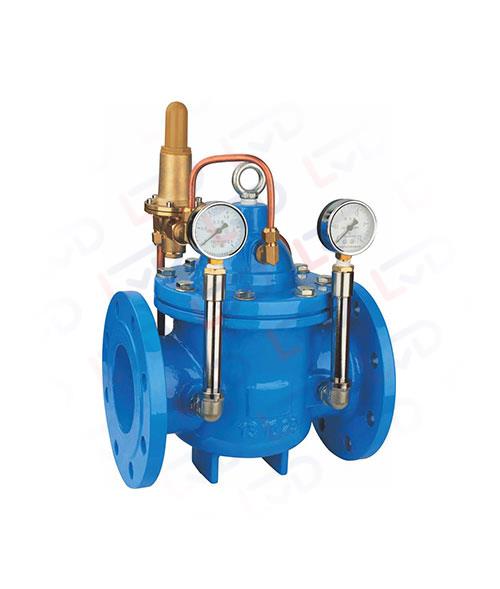

This valve consists of main valve, pilot valve, needle valve, one-way valve, ball valve, micro-filter and pressure gauge. Since the pilot valve, needle valve and pressure gauge are connected with the main valve through conduit, they are collectively referred to as the conduit control system.
